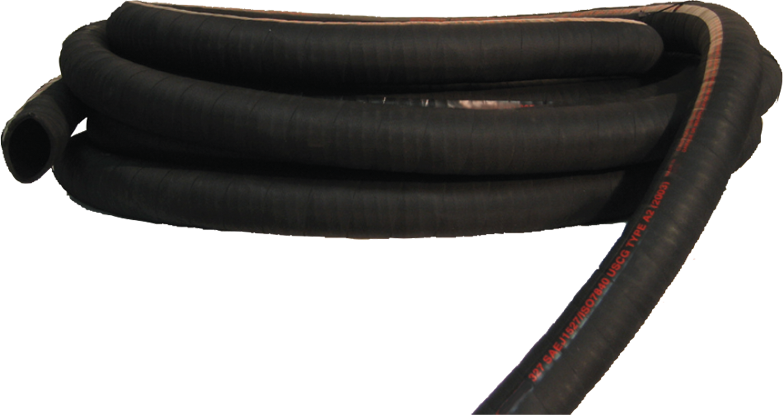

Automotive Hose

* Designed for tight bend radius, this multi-purpose hose is excellent for marine, automotive, RV, industrial, and commercial fuel fill low-pressure applications. This premium fuel fill hose handles leaded, unleaded, alcohol-added, diesel, biodiesel, and ethanol-based fuels. Resistant to heat, weather, abrasion, and ozone.

Application:
Style:
Grade:
Specifications:
Cover Color:
Construction
Tube:
Reinforcement:
Cover:
Temperature Resistance:

Fuel Transfer
Gas Tank Filler
N/A
SAEJ1527 USCG TYPE A2
Black with Red Stripe

Nitrile (NBR)
Two plies Synthetic Fabric with Helix Wire
Nitrile (NBR)
-30 Degrees F to 212 Degrees F

Both manufacturer and distributor specifically, but not by way of limitation, disclaims any and all liability for the use or performance of the products in any application(s) other than those applications specified for such product(s) in this catalog and any such non-specified use voids any otherwise applicable warranty and is at the purchaser’s sole risk and liability.

*Not Suitable for use with any form of eytholene glycol type engine coolants.
**Not Suitable for gasoline/oil mixed fuels, alcohol blended fuels, or bio-diesel fuel.
